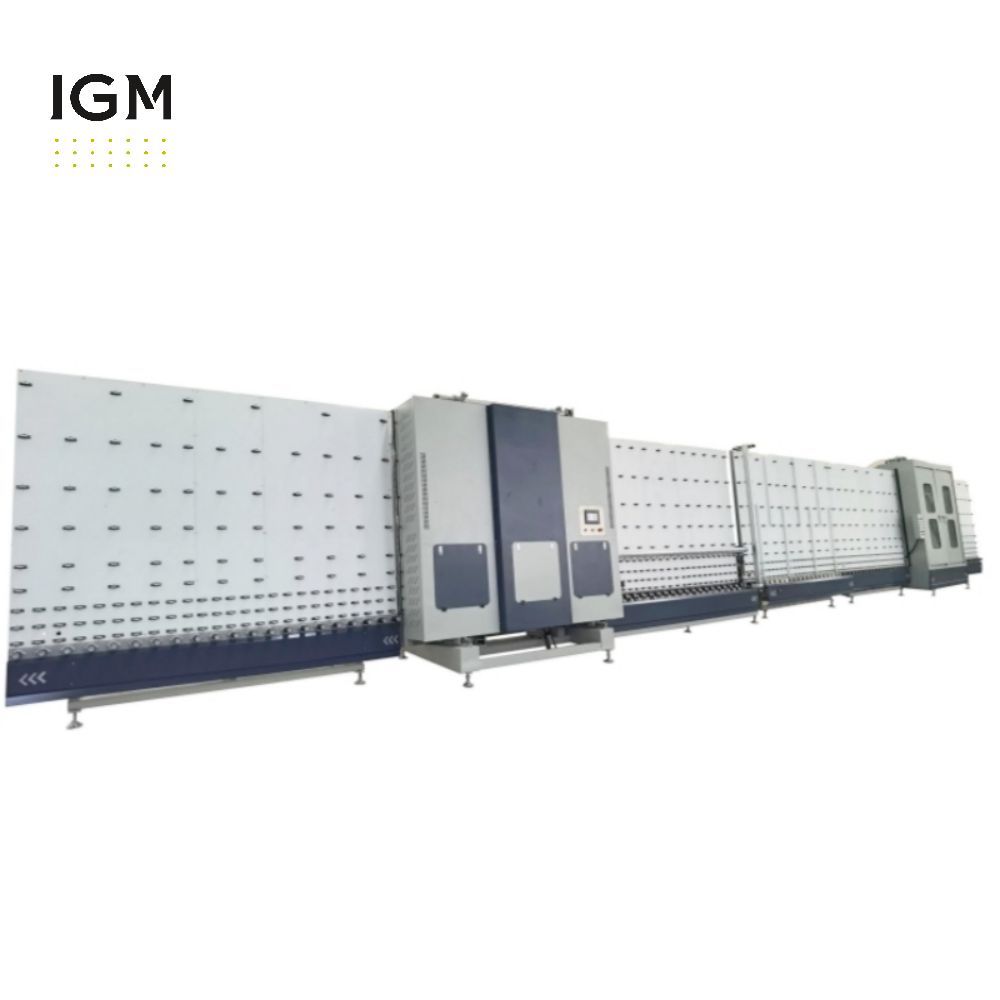

Máquina automática de doble acristalamiento vertical lzk2000

PARÁMETROS TÉCNICOS DE

ACCESORIOS ESTÁNDAR

CARACTERÍSTICAS PRINCIPALES

1. La máquina automática de doble acristalamiento LZK2000 puede realizar el lavado y secado de vidrio y el montaje de vidrio aislante. Puede producir vidrio aislante de dos y tres capas, vidrio aislante de lados desiguales y vidrio aislante de formas especiales.

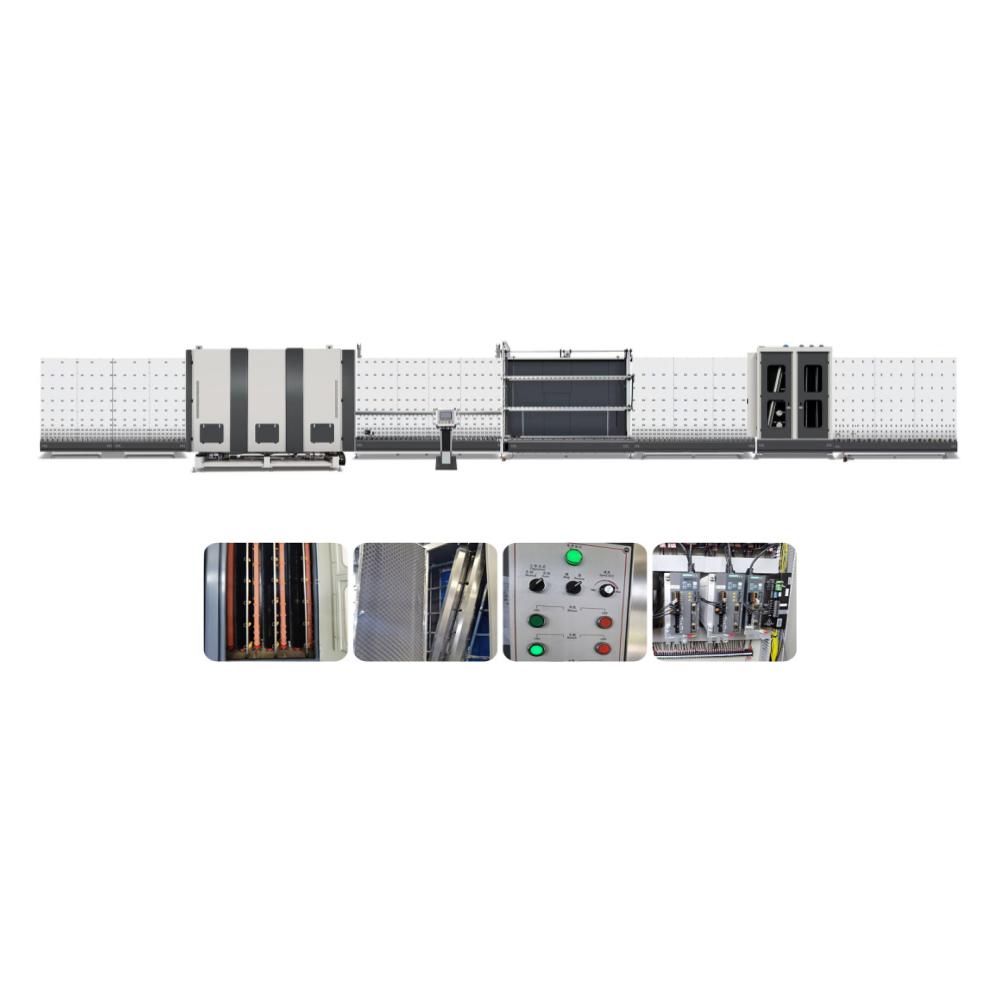

2. La línea de producción incluye 7 secciones: sección de carga de vidrio, sección de lavado y secado, sección de transporte, sección de inspección, sección de ensamblaje, sección de prensado de placas y sección de salida.

3. Adopta un sistema de control PLC, conversión de frecuencia de múltiples etapas y tiene función de optimización de velocidad de múltiples etapas.

4. El chasis y la superficie del fregadero de la sección de lavado están hechos de una placa esmerilada de acero inoxidable 404 de grado alimenticio. El rodillo de goma de transmisión adopta un rodillo de goma resistente a ácidos y álcalis, que puede ajustar automáticamente la distancia de acuerdo con los diferentes espesores de vidrio. Tres pares de cepillos están equipados con rociadores de agua de alta presión, y los cepillos están hechos de alambre suave resistente a altas temperaturas para evitar daños en la capa de película superficial del vidrio revestido. La sala de limpieza adopta una cubierta impermeable de vidrio orgánico, que es fácil de desmontar y reparar.

5. When washing, water is pumped out of the water tank, sprayed on the glass surface through the nozzle of the water spray pipe, cleaned by the brush, and then returned to the water tank for recycling. The rinse tank is equipped with a temperature-controlled water heater to automatically maintain the water temperature. If the water quality is poor, the user needs to equip a water purification device. After cleaning, the water enters the rinse tank and is recycled according to the above steps. (The water purification device needs to be prepared by the user)

6. The conveying section and the inspection section adopt a dual-speed transmission. When the glass comes out of the washing section, the conveying section and the inspection section run at a low speed to match the speed of the cleaning machine; the rear edge of the glass passes through the photoelectric system on the right side of the inspection conveyor. When starting and stopping the machine, the conveying section and the inspection section run at a high speed, and the glass is transported at an accelerated speed. The dual-speed transmission not only improves production efficiency, but also avoids the wear of the conveying wheel caused by inconsistent transmission speed at the connection between the conveying section and the inspection section and the cleaning machine. The optical detection output part adopts an additional shutdown function, which can be sampled and inspected at any time to detect uncleaned glass in time and fully ensure the qualified level of the finished product.

7. The glass waiting function can be realized, which can effectively improve the speed and efficiency of glass processing.

8. The pressing section adopts a servo system and gear rack transmission to fully ensure that the two pressing plates are parallel. It has a pressure adjustment function and can process insulating glass of different sizes. The pressure holding time can also be adjusted according to the glass size.

9. Accurate positioning, no misalignment, the flat pressing section adopts a famous brand vacuum generator with strong suction and a vacuum degree of ≥0.8bar.

10. Automatically identify LOW-E glass and coated glass.

DETAILS OF DOUBLE GLAZING MACHINE

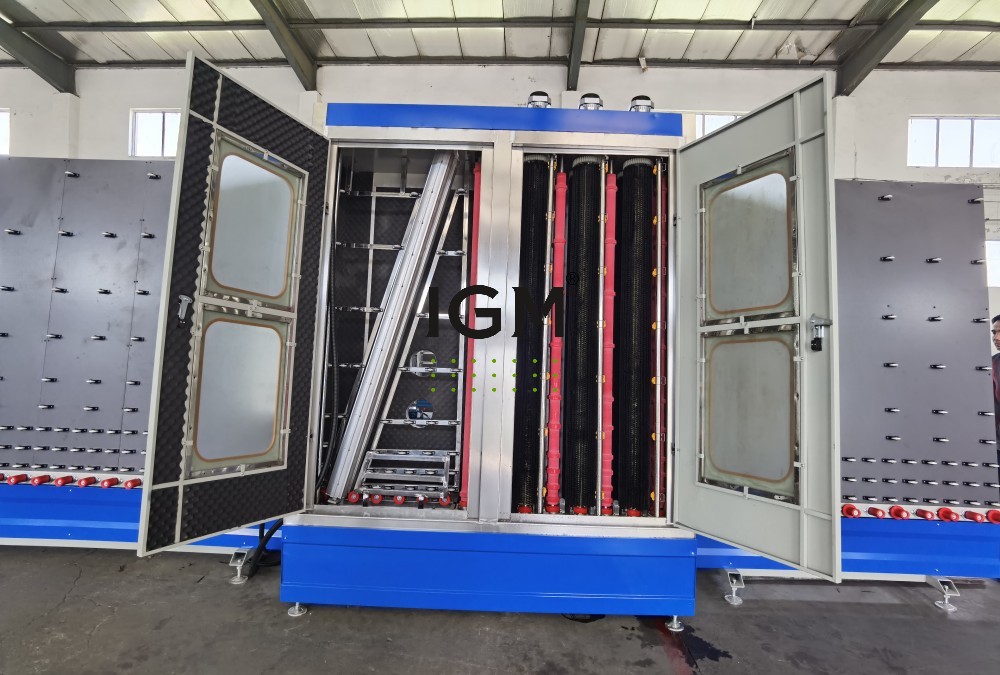

Glass Washing Drying Section of Double Glazing Machine

PACKING AND SHIPPING

FCL: Generally, the outer packaging is plastic film, and the machine is fixed in a 20/40-foot container with steel wire or special packaging tape; the outer packaging can also be selected as a fumigation-free wooden box according to requirements. Extra-high-size machines require open-top cabinets.

We have many years of export and loading experience. While ensuring the safety of the machines, we rationally plan and utilize container space to save transportation costs for our customers.

OUR ADVANTAGES

1. Technical capability and innovation capability:
IGM has a senior R&D and design team with 15-20 years of industry experience; the company's annual R&D cost accounts for about 10%-15% of its profits, and it launches an industry-leading product every one to two years; it has numerous invention patents and utility model patents, and the number and technical level belong to the first echelon in China.

2. Ultimate product quality and reliability:
Our factory has passed international quality certification systems such as ISO and BV. The equipment has a low failure rate and a long service life. The market is very satisfied with product quality and customer satisfaction surveys.

3. High production capacity and efficiency:
The factory covers an area of 15,000 square meters, has its own machining workshop and sheet metal processing workshop; has more than 80 employees; ERP management has been implemented from procurement, finance, orders, production, and delivery, with a high degree of optimization of production processes, high production efficiency, and reduced production costs.

4. Market share and brand influence:
Market coverage: market share and distribution at home and abroad.
Brand awareness and reputation: brand awareness, reputation and customer loyalty within and outside the industry.
Sales network and service network: the breadth of sales channels and the coverage of after-sales services.

5. Customer customization capabilities:
Provide customized solutions based on customer needs; respond faster to customer needs and market changes.

OUR SERVICES

Installation and commissioning services:
On-site installation support: Provide professional technicians to install equipment on-site.
Equipment commissioning: Ensure that the equipment can operate normally after installation, including commissioning and testing.

Technical training:
Operation training: Provide equipment operation training to customers' operators to ensure that they can use the equipment correctly and safely.
Maintenance training: Provide equipment maintenance and maintenance training to customers' maintenance personnel to improve the service life and reliability of equipment.

Maintenance and maintenance:
Regular inspection: Provide regular equipment inspection services to discover and solve potential problems and prevent failures.
Preventive maintenance: Provide preventive maintenance suggestions and services based on the use and characteristics of the equipment.

Maintenance services:
Quick response: Establish a quick response mechanism to handle customer maintenance requests in a timely manner.
Remote support: Provide remote technical support through telephone, video and other means to solve equipment failures.
Spare parts supply: Ensure the timely supply of spare parts and reduce downtime caused by spare parts shortages.

Technical support and consulting:
24/7 support: Provide round-the-clock technical support and consulting services to answer customer questions at any time.
Provide technical information, FAQs and real-time consultation.

Warranty service:
Warranty period: longer warranty time - 18 months, provide lifelong after-sales service.

Customer feedback and improvement:
Regularly contact customers to actively understand the use of equipment and customer satisfaction.
Attach importance to customer feedback and continuously improve products and services based on customer suggestions.

Upgrade and transformation service:
According to technological development and customer needs, provide equipment upgrade services to improve equipment performance.
Provide customers with equipment transformation solutions to meet special process requirements or improve production efficiency.

Introducción de la empresa:  JINAN IGM INTERNATIONAL CO., LTD.

Acerca de nosotros:  JINAN IGM INTERNATIONAL CO., LTD. es una empresa líder ubicada en Jinan, China, especializada en el diseño, fabricación y distribución de  máquinas para ventanas de UPVC, máquinas para ventanas de aluminio y máquinas para vidrio doble de alta calidad . Nuestra empresa se compromete a brindar soluciones innovadoras y personalizadas para satisfacer las diversas necesidades de nuestra clientela global.

Productos y servicios:  Ofrecemos una amplia gama de maquinaria que se adapta a la fabricación de ventanas de aluminio y UPVC, así como soluciones de doble acristalamiento. Nuestros productos están diseñados para brindar precisión, eficiencia y durabilidad, lo que garantiza que nuestros clientes puedan producir ventanas de alta calidad que cumplan con los estándares internacionales.

Presencia en el mercado:  Nuestra maquinaria avanzada ha encontrado amplias aplicaciones en América del Norte, América del Sur, Europa, Medio Oriente y otras regiones. Nuestra presencia global es un testimonio de nuestro compromiso con la calidad y la satisfacción del cliente.

Investigación y desarrollo:  En JINAN IGM INTERNATIONAL CO., LTD., ponemos un fuerte énfasis en la investigación y el desarrollo. Nuestro dedicado equipo de I+D trabaja incansablemente para innovar y mejorar nuestra oferta de productos. Nos mantenemos a la vanguardia de los avances tecnológicos para garantizar que nuestra maquinaria siga siendo de vanguardia y capaz de satisfacer las necesidades cambiantes del mercado.

Capacidades de personalización:  Entendiendo que cada cliente tiene requisitos únicos, ofrecemos soluciones a medida para abordar necesidades de producción específicas. Nuestras capacidades de personalización garantizan que cada máquina esté diseñada y configurada para optimizar el rendimiento y la eficiencia de las operaciones de nuestros clientes.

Procesos estandarizados:  Desde la adquisición hasta la producción y la inspección de calidad, JINAN IGM INTERNATIONAL CO., LTD. se adhiere a procesos estandarizados para mantener los más altos niveles de calidad y consistencia. Nuestras rigurosas medidas de control de calidad garantizan que cada máquina que sale de nuestras instalaciones cumpla con los estrictos estándares esperados por nuestros clientes.

Garantía de calidad:  La calidad está en el corazón de todo lo que hacemos. Nuestros procesos de producción estandarizados e inspecciones de calidad exhaustivas garantizan que nuestras máquinas brinden un rendimiento confiable y una durabilidad duradera. Estamos comprometidos con la excelencia en todos los aspectos de nuestras operaciones, asegurando que nuestros clientes reciban productos en los que puedan confiar.

Conclusión:  JINAN IGM INTERNATIONAL CO., LTD. es su socio de confianza para maquinaria de fabricación de ventanas de alto rendimiento. Con nuestras capacidades avanzadas de I+D, amplias opciones de personalización y un compromiso inquebrantable con la calidad, nos dedicamos a ayudar a nuestros clientes a lograr el éxito en sus respectivos mercados. Elija  IGM para soluciones innovadoras y un servicio excepcional.
