ТЕХНИЧЕСКИЕ ПАРАМЕТРЫ
| Product Name | CNC Automatic UPVC Window Corner Welding and Cleaning Machine Line |
| Model | AWCL-200C |
| Input Power | 20 KW |
| Working Air Pressure | 0.6 -0.8 Mpa |
| Electric Power | 380V / 415V 50 /60Hz |
| Welding Profile Height | 20 - 120mm |
| Welding Profile Width | 120 mm |
| Corner Cleaning Profile Height | 20 - 120mm |
| Corner Cleaning Profile Width | 120 mm |
| Max. Welding Range | 1800*3000mm |
| Min. Welding Range | 500*700mm |
| Machine Size | 13500*5500*1850 mm |
| Gross Weight | 5000 KGS |
| Brand | IGM |
| Operation Manual | √ |
| Operation Video | √ |
| Color Customization | √ |
| Normal welding mode | √ |
| Broaching corner cleaning mode (Micro seam welding mode) | √ |
MAIN FEATURES OF UPVC WINDOW WELDING MACHINE PRICE
1. It features automatic welding, automatic conveying, automatic positioning, automatic corner cleaning, and automatic unloading.
2. In the normal welding mode, broaches do not work. After welding, the window frame is transported to the corner cleaning unit for corner cleaning.
3. In the broach cleaning mode, the upper and lower knives adopt the micro-slit welding mode, and then the broach cuts off the upper and lower welding slag to form a 1-3 mm gap (the gap width of 1-3 mm can be customized)
4. The broaching cleaning mode not only achieves the micro-seam welding effect and beautiful window corners, but also has the same corner strength as the ordinary welding mode. One machine for multiple uses.
5. Upper and lower knives are made of hard alloy material and are quenched to ensure good cutting effect, wear resistance and support replacement.
6. It's Max. welding range 3000*1800mm, Min. welding range is 700*500mm.
7. The CNC corner cleaning unit can customize the number of milling cutters according to the UPVC profile.
8. The well-known control system, servo motor and precision linear guide are adopted to ensure the processing accuracy and stability of the machine.
9. It can connect data with mainstream door and window optimization software and ERP management software to realize intelligent production and management.
DETAILS

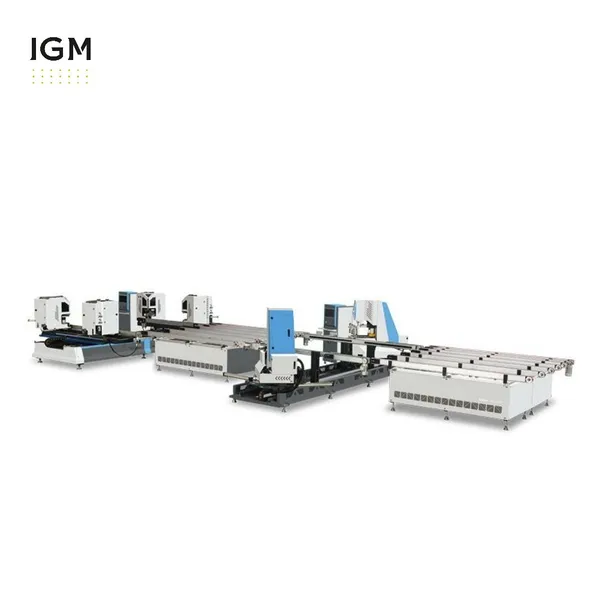

CNC Automatic UPVC Window Corner Welding and Cleaning Machine Line

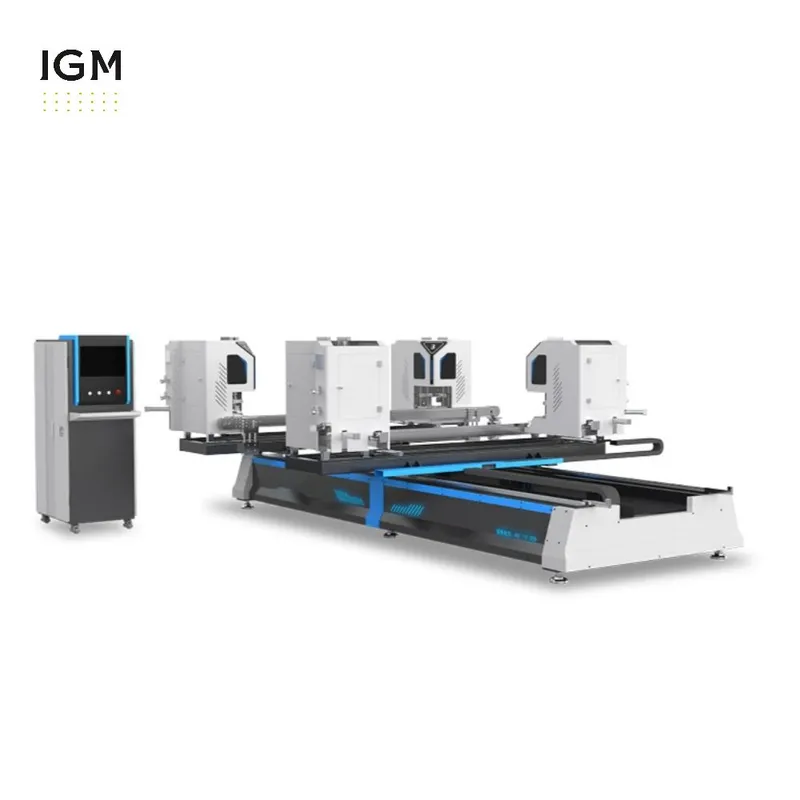

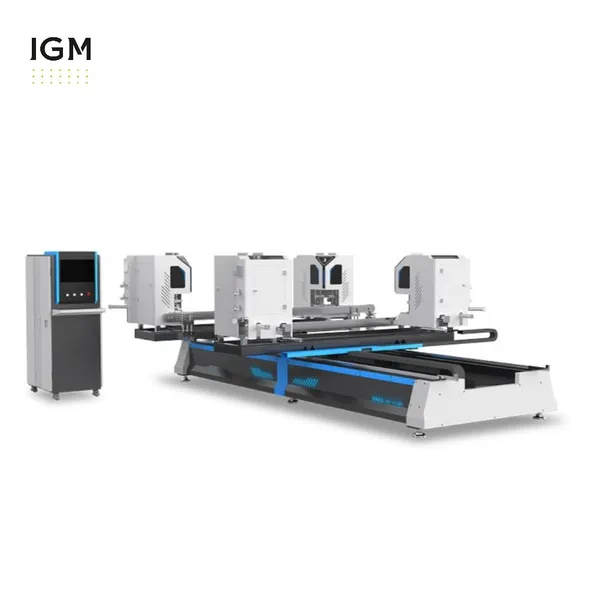

Four Conrers UPVC Window Welding Machine

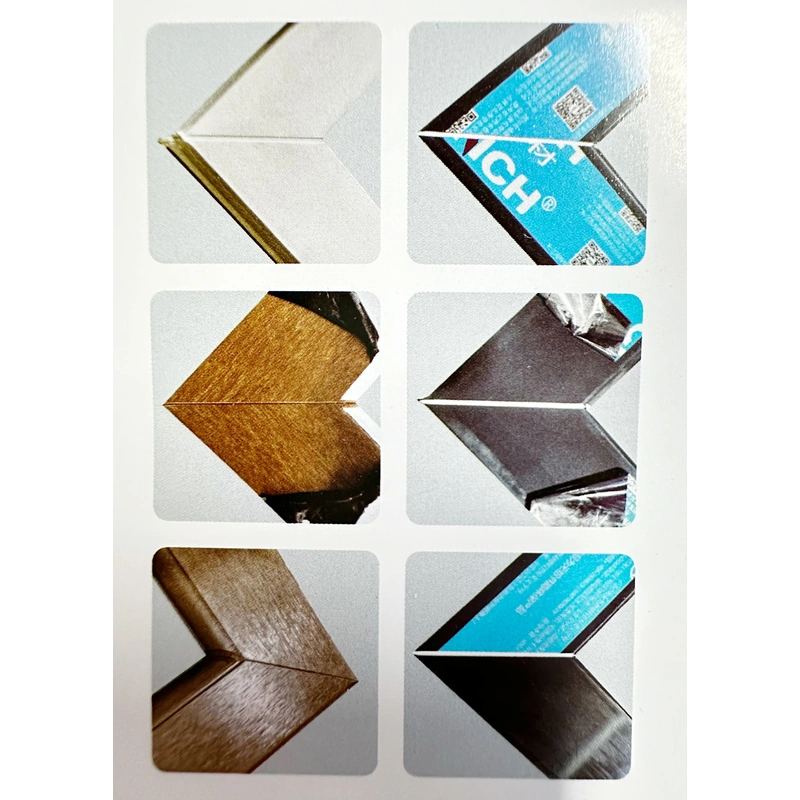

Each machine head has two upper and lower broaches, which cut off the welding slag when welding is completed, forming a micro seam, which is very beautiful.
The seam of top and bottom sides, is formed by the broaching of the machine heads, not the corner cleaning unit. The gap width is optional from 1 to 3 mm.
Double-head corner cleaning unit, each head has 9 tools, which can clean different positions of various window types.
PACKING AND SHIPPING
LCL: upvc window welding machine is packed in fumigation-free plywood, the pallet is thickened and raised, and the machine base is fixed with steel wire.
FCL: Generally, the outer packaging is plastic film, and the machine is fixed in a 20/40-foot container with steel wire or special packaging tape; the outer packaging can also be selected as a fumigation-free wooden box according to requirements. Extra-high-size machines require open-top cabinets.
We have many years of export and loading experience. While ensuring the safety of the machines, we rationally plan and utilize container space to save transportation costs for our customers.
OUR ADVANTAGES
1. Technical capability and innovation capability:
IGM has a senior R&D and design team with 15-20 years of industry experience; the company's annual R&D cost accounts for about 10%-15% of its profits, and it launches an industry-leading product every one to two years; it has numerous invention patents and utility model patents, and the number and technical level belong to the first echelon in China.
2. Ultimate product quality and reliability:
Our factory has passed international quality certification systems such as ISO and BV. The equipment has a low failure rate and a long service life. The market is very satisfied with product quality and customer satisfaction surveys.
3. High production capacity and efficiency:
The factory covers an area of 15,000 square meters, has its own machining workshop and sheet metal processing workshop; has more than 80 employees; ERP management has been implemented from procurement, finance, orders, production, and delivery, with a high degree of optimization of production processes, high production efficiency, and reduced production costs.
4. Market share and brand influence:
Market coverage: market share and distribution at home and abroad.
Brand awareness and reputation: brand awareness, reputation and customer loyalty within and outside the industry.
Sales network and service network: the breadth of sales channels and the coverage of after-sales services.
5. Customer customization capabilities:
Provide customized solutions based on customer needs; respond faster to customer needs and market changes.
OUR SERVICES
Installation and commissioning services:
On-site installation support: Provide professional technicians to install equipment on-site.
Equipment commissioning: Ensure that the equipment can operate normally after installation, including commissioning and testing.
Technical training:
Operation training: Provide equipment operation training to customers' operators to ensure that they can use the equipment correctly and safely.
Maintenance training: Provide equipment maintenance and maintenance training to customers' maintenance personnel to improve the service life and reliability of equipment.
Maintenance and maintenance:
Regular inspection: Provide regular equipment inspection services to discover and solve potential problems and prevent failures.
Preventive maintenance: Provide preventive maintenance suggestions and services based on the use and characteristics of the equipment.
Maintenance services:
Quick response: Establish a quick response mechanism to handle customer maintenance requests in a timely manner.
Remote support: Provide remote technical support through telephone, video and other means to solve equipment failures.
Spare parts supply: Ensure the timely supply of spare parts and reduce downtime caused by spare parts shortages.
Technical support and consulting:
24/7 support: Provide round-the-clock technical support and consulting services to answer customer questions at any time.
Provide technical information, FAQs and real-time consultation.
Warranty service:
Warranty period: longer warranty time - 18 months, provide lifelong after-sales service.
Customer feedback and improvement:
Regularly contact customers to actively understand the use of equipment and customer satisfaction.
Attach importance to customer feedback and continuously improve products and services based on customer suggestions.
Upgrade and transformation service:
According to technological development and customer needs, provide equipment upgrade services to improve equipment performance.
Provide customers with equipment transformation solutions to meet special process requirements or improve production efficiency.
